Impact Hammers
Air-Hydraulics, Inc. offers high-performance electric and pneumatic impact hammers, which deliver up to 20 tons of adjustable, instantaneous force for tasks ranging from light taps to heavy-duty industrial applications. These versatile benchtop units are designed for easy integration into automated assembly systems or use as standalone workstations.
Adjustable Impact
Power hammers offer an instantaneous impact that can be varied by application. This allows the machines to handle a wide range of tasks, from “light taps” to heavy-duty impacts, up to the unit’s full capacity.
Energy Efficiency
The Z Series models utilize shop air as a power source, which is cleaner and more energy-efficient than some alternative power methods.
Versatile Integration
Designed as benchtop models that can be easily integrated into larger automated assembly systems or used as standalone workstations, providing flexibility for different manufacturing environments.
Application Flexibility
These hammers are suitable for a diverse array of applications, including riveting, marking, staking, swaging, trimming and destructive testing.

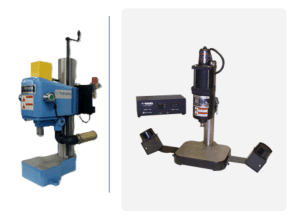

The Air-Hydraulics Impact Hammer and Electropunch offer instantaneous impact, which may be varied up to the unit’s capacity. These bench top models are ideal for light taps to heavy impacts and can be easily integrated into assembly systems. The Impact Hammer is fully pneumatic and has a constant stroke with a force range from 6 to 20 tons capacity. The Electropunch is an all electric operation with an impact force capacity of 3,500 lb. to 15,000 lb.
AHI Impact Hammer Models
Applications: Assembly, Riveting, Marking, Staking, Swaging
Models: Model C, Model FJS, Model BS, Model SMS, Model JS
- 3500-15000 lbs. Impact Force
- Fully Electric Operated Unit Ideal for Light Taps to Heavy Impacts
- Instantaneous Impact
- The Model C and the Model FJS are mounted in a rugged cast iron frame
- Model BS and SMS are mounted on a column in which daylight opening can be adjusted
- 1.75″/2.0″ Overall Stroke
- Two Hand Non-Tie Down Actuators or Footswitch with Safetyswitch Operation
- Bench Type Units
Applications: Stamping, Forging, Coining, Riveting, Staking, Forming, Trimming
Models: 6 Ton Impact Hammer, 20 Ton Impact Hammer
- 6 to 20 Tons of Impact Force
- Utilizes Shop Air as a Clean and more Energy Efficient Power Source
- Features an adjustable daylight or working height openning
- Constant Stroke
- 4″ Overall Stroke
- Two-Hand Non-Tie Down Control Actuators
- Available in Benchtop or Mounted Models
