Air Presses

The A-Series Adjustable Air Press and AP-Series Black & Webster Air Press lines cover an array of application needs. The A-Series Air Press is a flexible dual acting air press which is excellent for multi-set up applications, or it can be manufactured to suit a specific application requirement. The AP-Series Air Press is a non-lubricating unit which is manufactured with a rugged cast frame for those small assembly operation that require precise and repeatability press strokes. For applications that require more force, our C-Series and AH-Series Press are a perfect solution for higher tonnage applications while still using factory supplied air. These self-contained air over oil presses use factory supplied air to achieve press forces up to 50 tons.

Our Air Presses

Adjustable AP

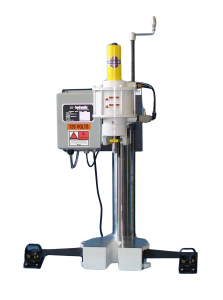

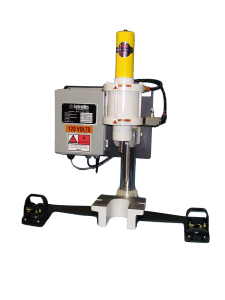

A-Series Adjustable Air Press

Applications: Assembly, Riveting, Punching, Marking, Staking, Crimping, Forming, Swaging

Models: 1200 lbs., 2800 lbs., 5000 lbs.

  • 1200 lbs. to 5000 lbs.
  • Highly Versatile Bench Top Fully Pneumatic Unit
  • Full Cylinder Head Adjustment
  • Anti-Rotation Ram Guide
  • 3.0″ Overall Standard Stroke (optional strokes available)
  • Two-Hand Non-Tie Down Control Actuators
  • Bench Type Unit
AP 1900

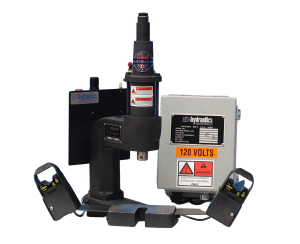

AP-Series Black & Webster Air Press

Applications: Assembly, Riveting, Punching, Marking, Staking, Crimping, Forming, Swaging

Models: 150 lbs., 400 lbs., 1200 lbs., 1900 lbs.

  • 150 lbs. to 1900 lbs.
  • Precise and Highly Repeatable Stroke
  • Highly Accurate Bench Top Fully Pneumatic Unit
  • Full Cylinder Head Adjustment
  • Anti-Rotation Ram Guide
  • Angled Frame for Ease Part Access
  • 0″ – 2.0″ Overall Standard Stroke (optional strokes available)
  • Two-Hand Non-Tie Down Control Actuators
  • Bench Type Unit
  • No Lubrication Required
15 Ton HiLo Press

AH-Series Hi/Lo Air over Oil Press

Hydra-Pneumatic Press

Applications: Riveting, Crimping, Punching, Swaging, Trimming, Marking or Character Stamping, Assembly, Notching, Joining, Forming, and Fastening

Models: 4 Tons, 8 Tons, 10 Tons, 15 Tons, 20 Tons, 30 Tons, 50 Tons

  • 4 Tons to 50 Tons of Hydraulic Force
  • More Cost Efficient Alternative to Full Hydraulic Presses
  • Utilizes Shop Air as a Clean and more Energy Efficient Power Source
  • Features a Quick Approach Stroke with a Self-Contained Hydraulic Intensified Power Stroke
  • 6″ Overall Stroke (optional strokes available)
  • Two-Hand Non-Tie Down Control Actuators
  • C-frame bench top or floor model, optional 2-post of 4-post
C500

C-Series Air Over Hydraulic Press

Fluid Power Leveraging

Applications: Riveting, Crimping, Punching, Swaging, Trimming, Marking or Character Stamping, Assembly, Notching, Joining, Forming, and Fastening

Models: 2.5 Tons, 5.5 Tons, 10 Tons, 15 Tons

  • 2 ½ to 15 Tons of Hydraulic Force
  • More Cost Efficient Alternative to Full Hydraulic Presses
  • Utilizes Shop Air as a Clean and more Energy Efficient Power Source
  • Features a Full Length Hydraulic Controlled Power Stroke
  • 2 – 3 Day Delivery on Certain Models
  • 4″ to 6″ Overall Stroke with 2″ Adjustable Downstop
  • Two-Hand Non-Tie Down Control Actuators
  • Available in Benchtop or Floor Model
