20-Ton-Custom Pin-Deforming-Assembly-Press

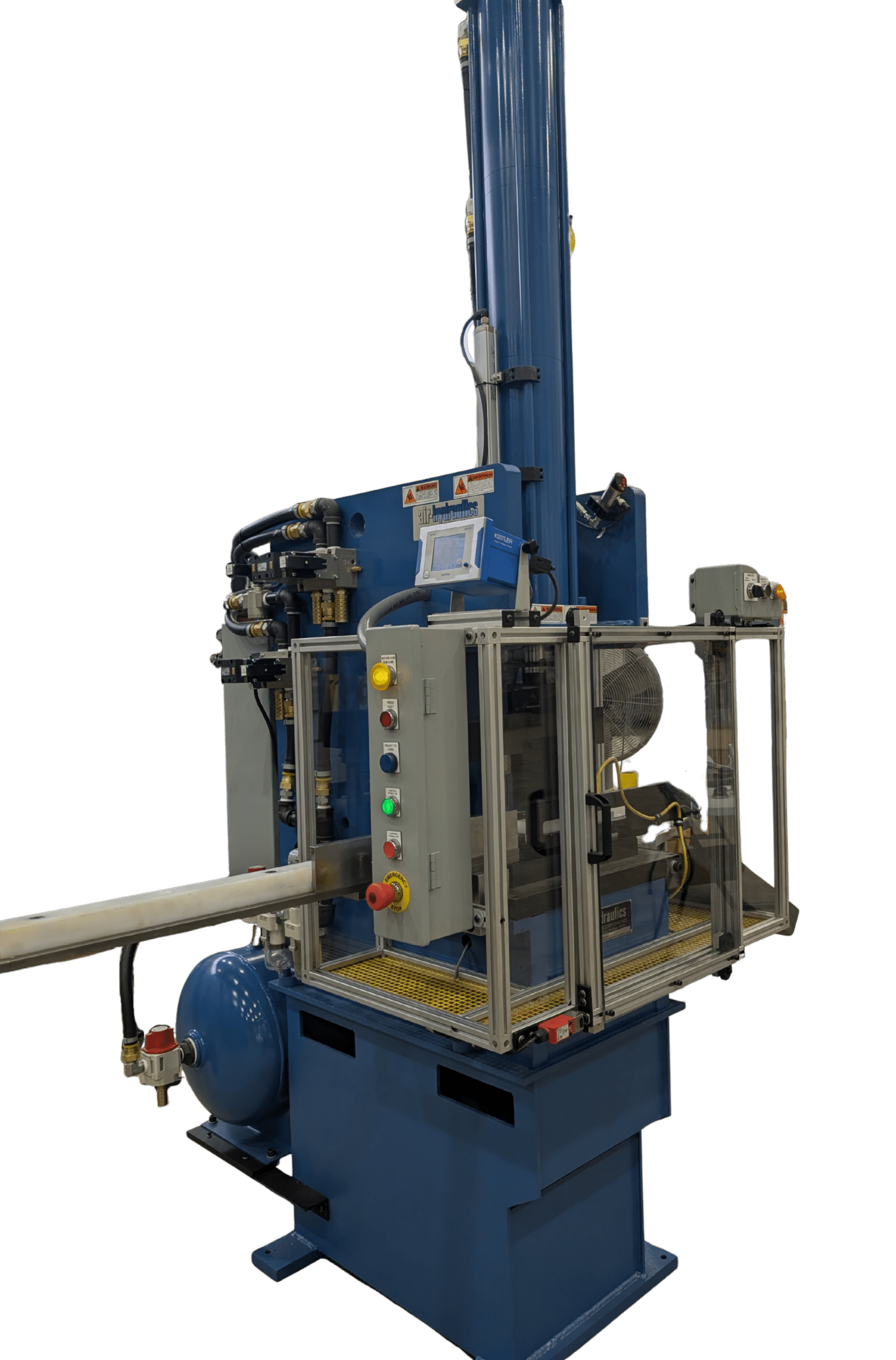

20 ton hydropneumatic custom pin deforming press for assembly

Case ID:13242

Application Details: Pin Deforming for Bracket Assembly

Requirement: Press and tooling package to increase production time and efficiency for the bracket assembly
Solution: Custom Air Hydraulics Model AH-20 Hydrapneumatic Press w/ Tooling Package and manual Feed system with part ejection system







Press Model AH20L-CF-PB Hydropneumatic Press
Application Pin Deformation
  • 20 Ton Air-over-oil Cylinder
  • Barrier Guarding w/ Interlocked Door
  • Emergency Stop
  • PLC Control
  • Auxiliary Air Tank
  • Force & Distance Monitor System
  • Custom Die Set Tooling with part ejection system and manual part feed
  • Auto-Cycle Mode
20 ton hydropneumatic custom pin deforming press for assembly
